Intelligent and stylish RFID card lock system

We are proud to present our latest RFID Locks, the ALV2 Wide and Slim Series. Enhance the security of your property with these stylish and durable steel locksets. Used in hotels, assisted living, apartments, beach resorts and schools. Available in several finishes and handle styles. Recommended for both indoor and outdoor properties. Passed the ANSI 156.25 grade 1 lock testing. Quality you can trust, usage as simple as tapping a card. For those that want extra functionality/encryption, we have upgrades for:BLE Digital Key, MiFare Plus, Mechanical Key Override, Auto-deadbolt and Residential Mode Function.

RFID Technology

RFID or Radio Frequency Identification gives the ALV2 locks the ability of reading and writing to the guest and staff cards
without them touching the lock. Simply place the card within half an inch of the reader and the lock will open.

Simple Lock Setup

Locks can quickly be programed via DTU tablet / infrared USB. Guest and staff keys can be issued / re-issued via the front desk encoder.

Read and write

When a card is used to open a lock, it can be written to as well as read. Guest cards - When Necessary, reading a guest card at front desk encoder will display important information such as room #, check in /checkout date, and error information such as why the card didn’t work at the guest room. Staff cards - Various information is added to the staff card every time it’s used. This would include the room, the time the lock was opened, as well as the status of the lock’s batteries.

Customizable Staff Access

Staff keys can be configured to match Hotel operator’s requirements. Whether it is a basement floor only engineer, a housekeeper, or a general manager with access to all rooms. These settings can also be changed to grant staff more access to rooms or implement restrictions, without having to reprogram the locks.

MiFare Plus, Bluetooth & More

Additional upgrade options include Bluetooth Digital Key (via guest smart phone App), MiFare Plus System ( extra encryption & security), Mechanical Key Override (Emergency Open via physical key), Auto-Deadbolt, and Residential Mode Function.

Interfacing

ALV2 is designed to interface to both PMS and POS solutions, using RS232 or TCP/IP key data can be automatically sent to the Miwa system making the check in procedure more efficient and eliminating key stroke errors.

Other systems

Miwa ALV2 RFID can integrate with other technology systems on property, due to very flexible software. These could include time and attendance or other access control systems.

Auditable Security

The front desk system can be audited to see who has made staff or guest keys. Locks hold the last 600 transactions and staff keys hold data from the last 140 transactions. The system provides management the necessary transparency to review staff and guest activity throughout their property.

Card control

As with all previous Miwa systems new guest cards cancel old guest cards and each staff card can be cancelled should it become lost or stolen.

Upgrade Path

Whether your property is large or small the cost of a new locking system is still substantial and at Miwa we take this very seriously, we build systems that last. With this in mind we also realize that technology changes and advances this is why we have built a new system that can be used to upgrade our existing AL5H magstripe card locks without the need to replace everything. The new ALV2 P type front escutcheons retro fit directly onto the existing lock case.

HANDLE & ESCUTCHEON VARIATION

ALV2(ALVB)UPHD476−3(ST)
ALV2(ALVB)UPHD66−3(BS)

The pressed stainless steel / Brass escutcheon is available as standard in 5 high-quality finishes.
Key Override available as an option.

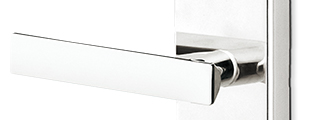

TYPE 478 HANDLE Satin Chrome Finish
(ST)

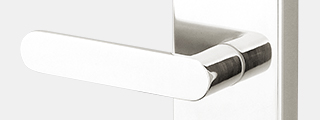

TYPE 66 HANDLE Polished Chrome Finish
(SB)

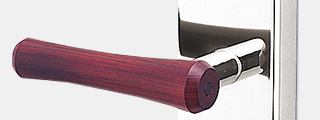

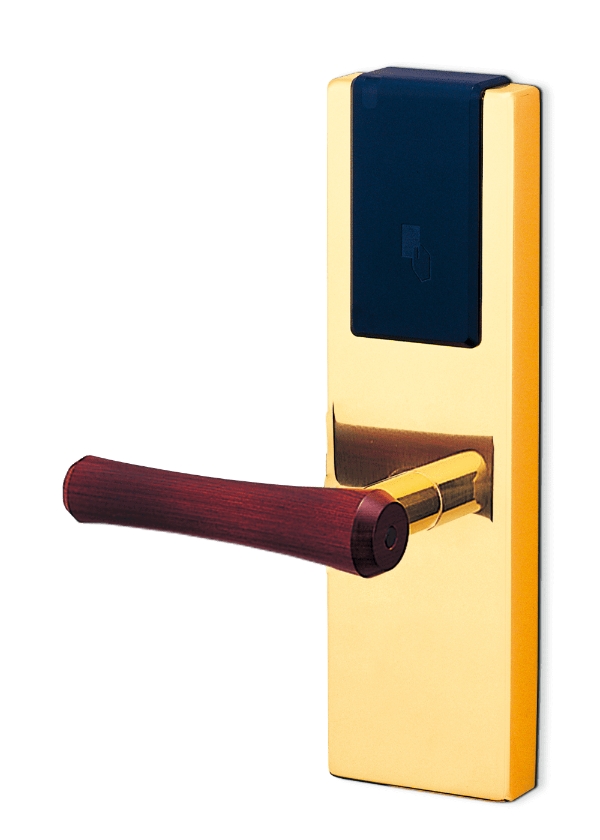

TYPE 67 HANDLE Polished Brass Finish
(YB)

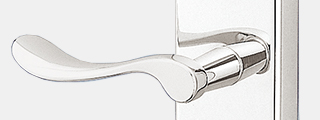

TYPE 74 HANDLE Satin Brass Finish
(BS)

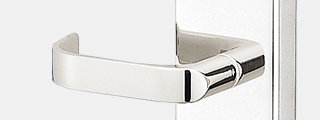

TYPE 476 HANDLE Mid Bronze Finish
(CB)
TYPE 476 HANDLE Matt Black Finish
(BK)

DETAIL DRAWING

SPECIFICATIONS
(ALV2P/ALVBP series)

Product Name Hotel Card Lock
Product Number with cylinder : ALV2(ALVB)UPH□*−1
without cylinder : ALV2(ALVB)UPH□*−3
□=D:27mm , G:32mm
*shows a handle symbol
Mountable Handles 66・67・74・476・478
Mountable Cylinders U9
Backset 70mm
Material
/Finish
Satin Chrome(ST) Polished Chrome(SB) Satin Brass(BS) Polished Brass(YB) Matt Black(BK) Mid Bronze(CB)
Door thickness 35 〜 65mm
Usability Left-hand and right-hand usable(inward opening)
Power Supply 4 AA alkaline batteries
Mobile key only ALVB is available
